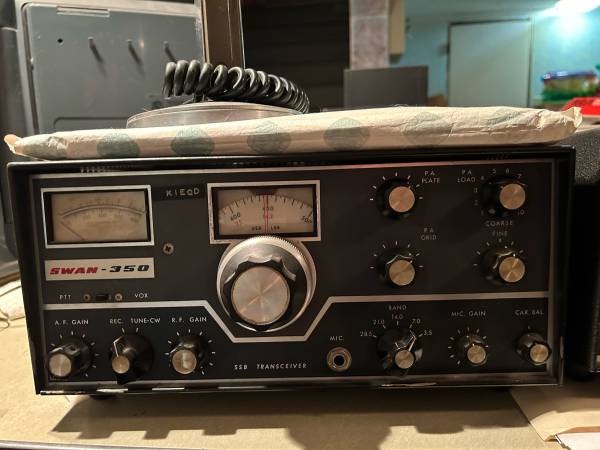

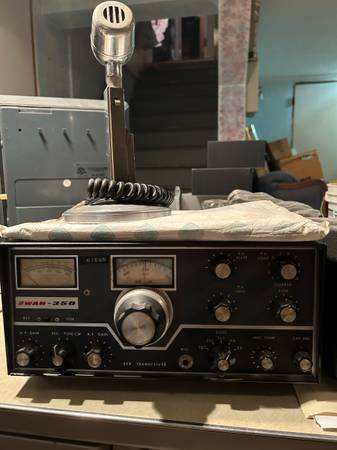

Swan 350 Transceiver + Power supply - $400 (Bradley)
QR Code Link to This Post
Email, call, or text nine 44- 10 eight. five leave message and I will get back to you. Texting is best.
$400
GENERAL
Type: Amateur HF transceiver
Frequency range: 10-80 m in five bands
80 m: 3.5-4 MHz
40 m: 7-7.5 MHz
20 m: 13.85-14.35 MHz
15 m: 21-21.45 MHz
10 m: 28.5-30.0 MHz
Tuning steps: Analog / continuous
Frequency stability: ±? ppm
Mode: AM / SSB / CW
Channels / memory management:
Repeater shift / offset: No
Power supply: Separate PSU
Current drain / power consumption: RX: ? mA
TX: Max ? A
Antenna impedance / connector: 20-300 ohm / SO-239
Dimensions (W*H*D): 330*140*279 mm (13*5.5*11")
Weight: ? Kg (? lb)
Other features:
RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker: ? W at ?% distortion / ? ohm
External speaker connector:
TRANSMITTER SECTION
RF output power:
Pwr
AM: >~70 W (140 W input)
SSB (PEP): ~200 W (400 W PEP input)
CW: ~160 W (320 W DC input)
Modulation system:
Max FM deviation (Factory set): No FM
Spurious emissions: Better than -? dB
Microphone impedance / connector: ? ohm / ?-pin (1/4")
Microphone input level: ? mV
MISCELLANEOUS
Manufactured: USA, 1965-196x (Discontinued)
Additional info: New price 1965 in Australia: $249.00 AUD
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
117C
? AC power supply with built-in speaker
External VFO
