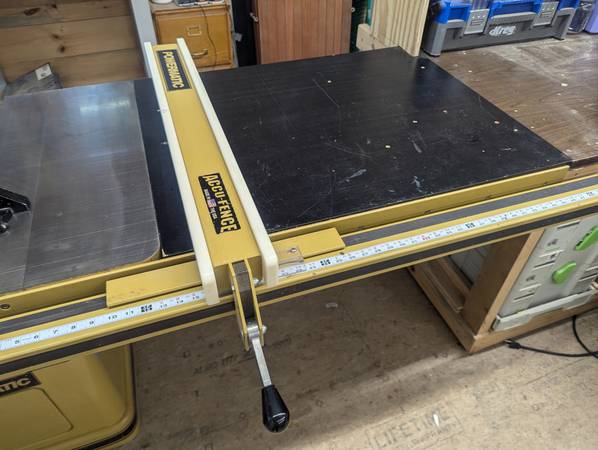

Powermatic Pro 10 Inch Cast Iron Table Saw - $3,450 (Anson)
condition:
excellent
make / manufacturer:
Powermatic
model name / number:
66-TA
size / dimensions:
80in. x 40in. x 38in.(h)
QR Code Link to This Post
Well treated and maintained
Model number 66-TA
Maximum motor size. 5HP, 3600 RPM
Table size with standard extensions (L x W)(in.) 37-1/2 x 28
Table size without extension (L x W)(in.) 21-1/2 x 28
Rip fence (L x W x H)(in.) 41-3/4 x 4 x 2-1/2
Arbor diameter (in.) 5/8
Saw blade diameter (in.) 10
Maximum speed of 10” saw blade (SFM) 11,000
Blade tilt maximum (deg.) 45
Maximum depth of cut (in.) 3-1/8 at 90-degrees; 2-1/8 at 45-degrees
Maximum cut to right of saw blade with standard extension (in.) 25
Maximum width of cutoff in front of saw in 1” stock (in.) 15
Maximum width of cutoff in front of saw in 3-1/8” stock (in.) 12-1/4
Maximum diameter of dado (in.) 8
Maximum width of dado cut (in.) 13/16
Drive belts 3VX (two)
Table height to floor (in.) 34
Dust port diameter (in.) 4
Weight with motor, fence and rails (lbs.) 614
Size Length: 80 in. Width: 40 in. Height: 38 in.
